主要特点
- 颜色丰富
- 表面电阻10E1~10 Ω/sq
- 使用温度范围宽
- 适用于模压和挤出工艺
- 无黑色污染及表面迁移
- 分散性优异
基本特性
| 特性 | 单位 | 数值 |
|---|---|---|
| Appearance | - | Black |
| Physical form | - | Solid |
| Specific gravity | - | 1.11 |
| Volume resistance | Ω∙cm | 5.1 x 10E-1 |
| Surface resistance | Ω/Sq | 3.0 x 10E0 |
← 可左右滑动表格 →
ACM SS-3添加量与表面·体积电阻
| Content(%) | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Surface Resistance (Ω/Sq) | Un- cured 1) | 10E10 | 10E9 | 10E8 | 10E8 | 10E7 | 10E6 | 10E5 | 10E4 | 10E4 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 |
| Cured 1) | 10E10 | 10E9 | 10E8 | 10E8 | 10E7 | 10E6 | 10E6 | 10E5 | 10E5 | 10E4 | 10E4 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | 10E3 | |
| Cured 2) | O.R | O.R | O.R | O.R | O.R | O.R | 7.2 ×10E6 | 1.7 ×10E6 | 2.0 ×10E5 | 1.3 ×10E4 | 5.2 ×10E3 | 3.1 ×10E3 | 2.2 ×10E3 | 1.2 ×10E3 | 9.0 ×10E2 | 8.0 ×10E2 | 5.0 ×10E2 | 4.5 ×10E2 | |
| Volume Resistance (Ω·cm) | Cured 2) | O.R | O.R | O.R | O.R | O.R | O.R | 2.4 ×10E6 | 3.3 ×10E5 | 4.0 ×10E4 | 2.6 ×10E3 | 1.0 ×10E3 | 6.2 ×10E2 | 4.4 ×10E2 | 2.4 ×10E2 | 1.8 ×10E1 | 4.0 ×10E1 | 2.5 ×10E1 | 2.2 ×10E1 |
| 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 1) MⓇ110 (Portable Resistance Meter) - WOLFGANG WARMBIER - Internal parallel electrode - Measurement Range : 10E3 ~ 10E12 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 | 2) MCP-T700 (Low Resistance Meter) - MITSUBISHI CHEMICAL ANALYTECH - ASP(4 pin) probe - Measurement Range : 10E-4 ~ 10E7 |
← 可左右滑动表格 →
*O.R = Over Range
产品照片

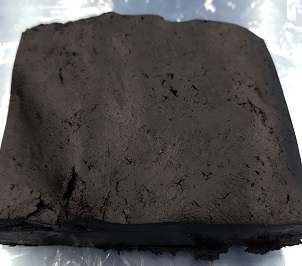

ACM SS-3（未硫化）
